DESCRIPTION OF WORKS

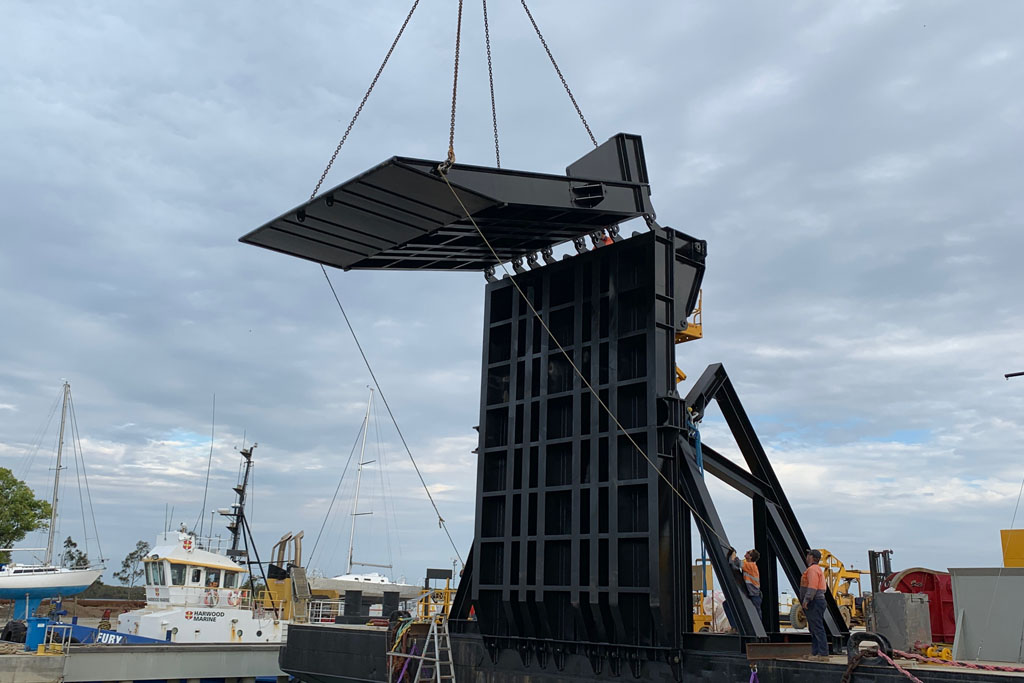

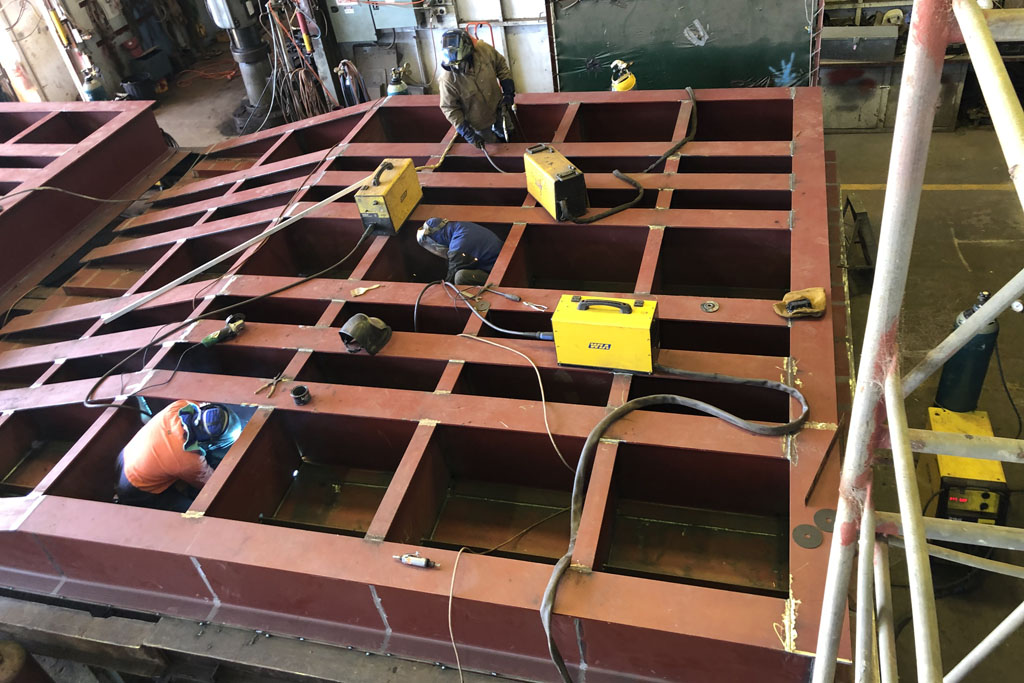

Design and construction drawings for articulating bow ramp
Design of lifting mechanism and connection to barge

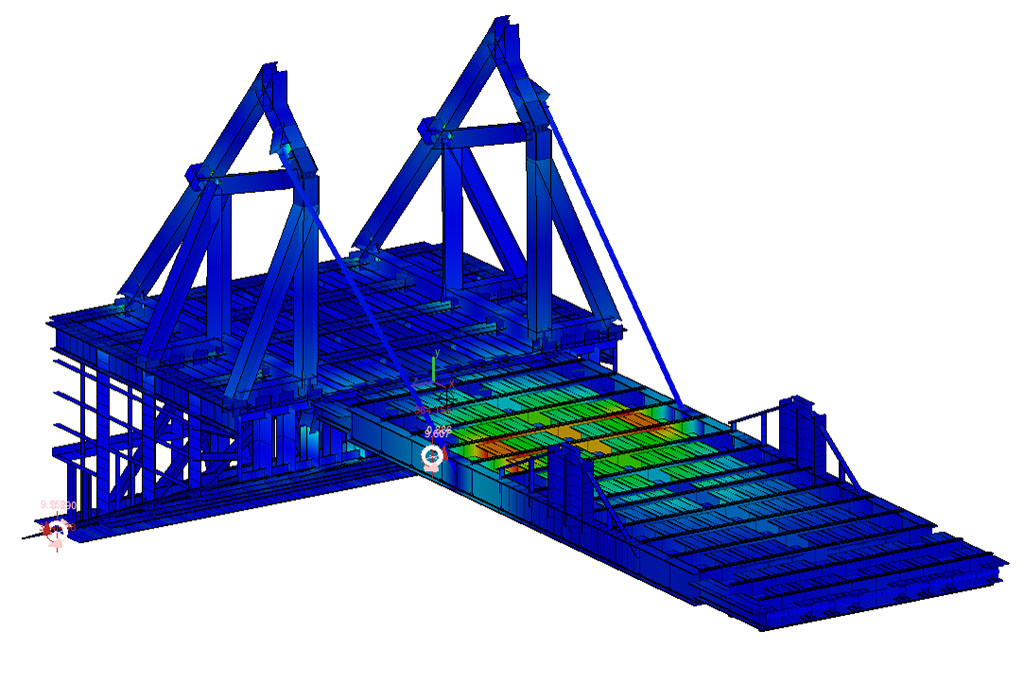

Deck Strength Analysis
Stability Update
RAMP DETAILS
Vessel Name : Bribie
Vessel Size : 76.2m (250′) flat top barge
Ramp Capacity : 65 tonnes
Ramp Length : 15.0 m
Clear Width : 4.7 m
Lift Mechanism : Winch and Wire
Folding Mechanism : Hydraulic Rams
CLIENT
Pacific Tug
BUILDER
Harwood Marine
